> Column Moving Type

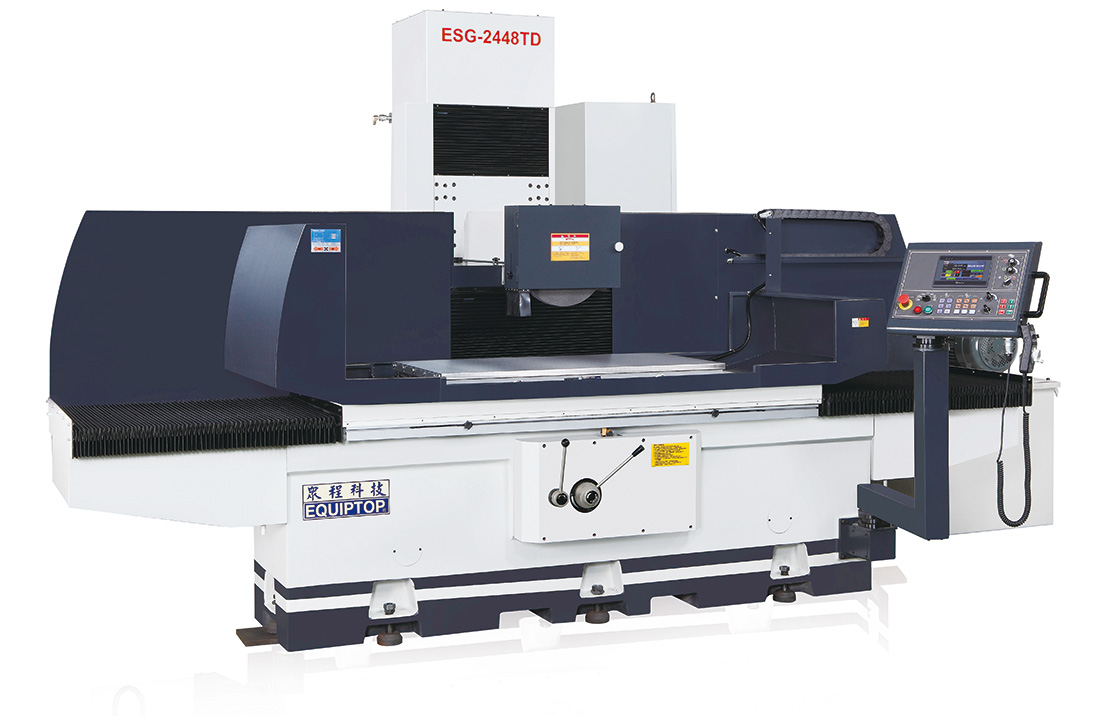

ESG-2448TD/CNC

Model Unit ESG-2448TD/CNC
Table Size LxW mm 600x1200
Max.grinding length Longitudinal mm 1260
Max.grinding width Crosswise mm 610
Max. distance from spindle center line to tafble surface   mm 720; 850(Optional)
Stadard magnetic chuck size   mm 600x1200
Longitudinal movement of table Max. travel-hydraulic mm 1300
Max. travel-manual mm 1350
Infinitely variable m/min 60HZ, 5-25m/min
50HZ, 5-20m/min
Cross movement of column Auto jog feed(Constant feed) mm 1~25(20~460)
Max. auto feed mm 660
Grinding wheel vertical downfeed Auto feed mm 0.001~0.05
Jog feed mm 0.001~0.05
Rapid travel Approx mm 460
Slow travel Approx mm 6
Handwheel revolution - MPG
Handwheel graduation mm
0.001x1 / 0.001x2 / 0.001x4(TD)
0.0001x1 / 0.0001x10 / 0.0001x100(CNC)
Spindle motor Speed RPM 60HZ, 1750rpm
50HZ, 1450rpm
Power rating HP 10HP/4P
Standard wheel O.D. x width x bore mm 405x50x127
Hydraulic motor Power rating HP 5HP/6P
Crossfeed motor Power rating KW 2
Elevating motor Power rating KW 1
Floor space LxWxH mm 5200x3500x2350
Weight N.W. KGS 6500
G.G.W. KGS 7500
Rated power(Approx) Standard HP 22HP
Packing dimensions   mm 4910x2290x2540
